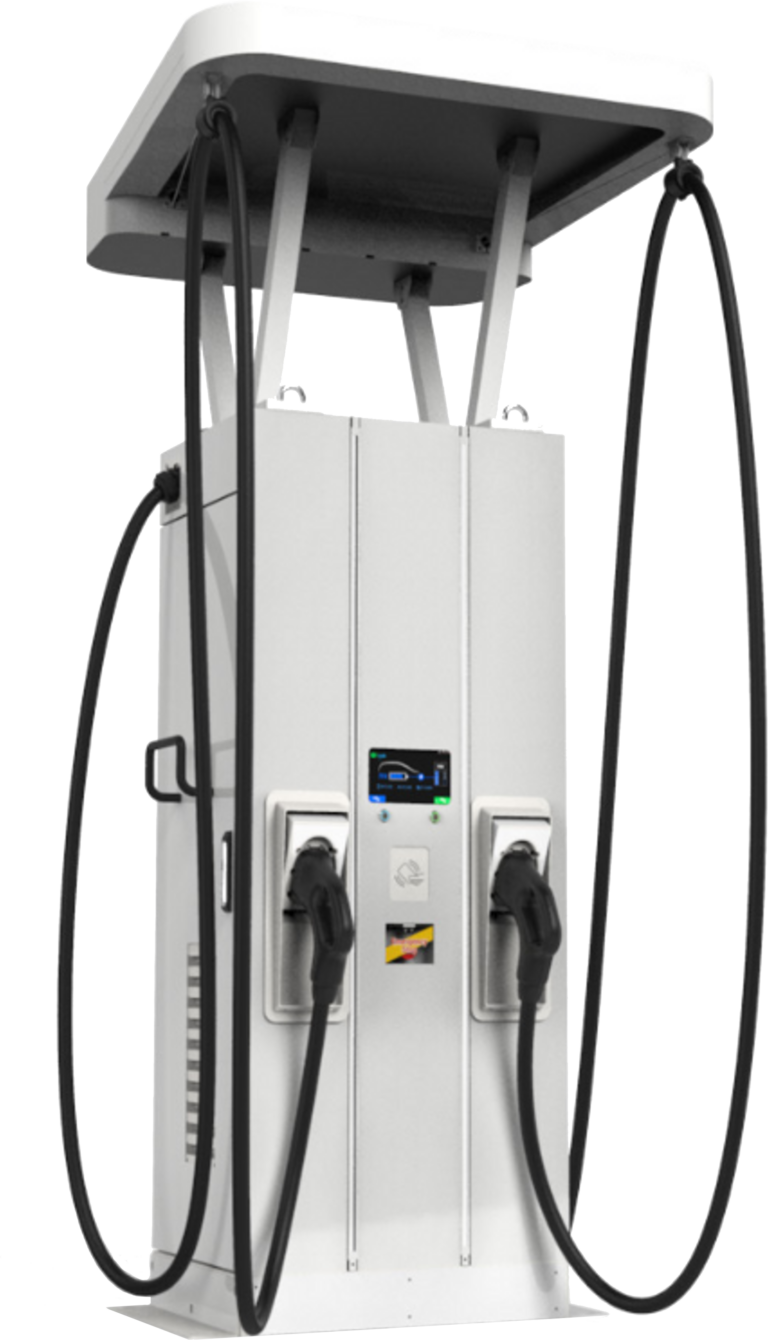

PEV-DS Series
DC Fast Charger
Experience the ultimate solution for gas/service locations, commercial fleet operators, and EV infrastructure services providers with our cutting-edge PEV-DS series. Delivering an impressive 120 kW charging power, upgradable to a remarkable 180 kW, this DC fast charger is precisely tailored to meet your unique charging demands. Unleash the true potential of your electric vehicle charging network with our high-performance PEV-DS series.
Features:
- Simultaneous DC charging
- Smart charging and load balancing
- OCPP 1.6J (upgradeable to 2.0)
- RFID card and user authentication
- Dual CCS1 connector
- 7″ LCD display
- Cable management accessory available
Specifications:
- Output power: 120 kW or 180 kW
- Output current: 200A
- Networking: Ethernet + Wi-Fi +4G
- Dimensions: 800 x 650 x 1900mm
- Connector cable length: 4.5m (15ft) /optional: 7m (23ft)
120 kW
180 kW
120 kW
Specifications:
- Output power: 120 kW
- Output current: 200A
- Networking: Ethernet + Wi-Fi +4G
- Dimensions: 800 x 650 x 1900mm
- Connector cable length: 4.5m (15ft) /optional: 7m (23ft)
180 kW
Specifications:
- Output power: 180 kW
- Output current: 300A
- Networking: Ethernet + Wi-Fi +4G
- Dimensions: 800 x 650 x 1900mm
- Connector cable length: 4.5m (15ft) /optional: 7m (23ft)
